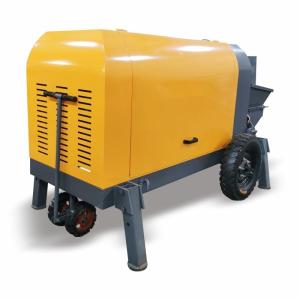

High Slump Hand Held Cement Stationary Concrete Pump 40 Cubic Meters

concrete pump Hbt 40 Tractor portable line Electric Small diesel hose mixer Mini truck machines

Product Description

1. High Efficiency: With its maximum output capacity of 40 cubic meters per hour, the HBT40 enables fast and continuous concrete pumping, improving construction productivity and meeting project deadlines.

2. Versatility: The HBT40 concrete pump is suitable for a wide range of concrete mixes, including low slump, high slump, and lightweight concrete. It can be used in various applications, such as foundations, slabs, walls, and more.

3. Precise Placement: The HBT40 allows for accurate and controlled concrete placement, even in challenging or hard-to-reach areas. It provides flexibility in construction projects, accommodating different heights and distances.

4. Durability and Reliability: The HBT40 is built to withstand the demanding conditions of construction sites. Its robust construction and high-quality components ensure long-lasting performance and reliability.

5. Operator-Friendly Design: The HBT40 is designed with user-friendly features that make it easy to operate and maintain. Its intuitive control system and accessible components simplify the pumping process and reduce downtime.

The HBT40 concrete pump is a versatile and efficient solution for concrete placement in various construction projects. Its combination of mobility, high performance, and ease of operation makes it a valuable asset for contractors and construction

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800
Hopper Capacity*Feeding Height	L*mm	350*1000	350*1100	600*1400	600*1400	600*1400
Max.Aggregate Size	mm	Pebble:20; Crushed Stone:20	Pebble:20; Crushed Stone:20	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40
Total Weight	kg	2300	2500	4500	6000	6100
Dimension(L*W*H)	mm	3800*1500*1600	4500*1500*1650	5100*1700*2000	6400*2100*2200	Product Tags: high slump Stationary Concrete Pump        40 cubic Stationary Concrete Pump        40 cubic hand held concrete pump        High Slump Hand Held Cement Stationary Concrete Pump 40 Cubic Meters Images Inquiry Cart 0 Select All Contact Now Send your message to this supplier   *From: Your email address is incorrect! *To: Hunan Sunny Intelligent Machinery Co.,LTD. *Subject: Subject is empty! *Message: For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!   You May Like Small Electric Hydraulic Stationary Concrete Pump Embolization Motor Mobile Small RMC Concrete Pump Mortar Mixer For Construction Linear Type Maneuverable Stationary Concrete Pump Tow Behind 52m³/H Customized Portable Diesel Engine Concrete Concrete Pump Machine Trailer Mounted 20 Meter Streamlined Stationary Concrete Pump Mixer Machine 2300kg Mini S Valve Cement Concrete Pump Stationary Truck Tractor Portable Mortar Grout Mini Cement Mortar Truck Stationary Concrete Pump Portable Pumpcrete 30m3/H 45kw Diesel Engine Mortar Pump Machine Stationary Pumpcrete Compact RMC Stationary Concrete Pump Commercial For Contractors Construction OEM Electric Small Portable Concrete Pumping Machine For Construction Site Customer Services Contact Us Submit Complaint Privacy Policy Help Center About Us About Us Join Us Buy On Us By Category By Mobile Sell On Us Supplier Membership Selling Lead Like Us Follow Us Friendly Links: www.everychina.com Home| Products| Suppliers| Site Map |About Us |Contact Us |Help |关于我们 |联系我们 Copyright © 2009 - 2025 howtoaddlikebutton.com. All rights reserved. Inquiry Cart 0 Select All Contact Now *Email: Your email address is incorrect! * From: * Message: Your message must be between 20-3,000 characters! Please reply me widthin 24 hours. Yes! I would like your verified suppliers matching service! Send Inquiry Now Recommended Quality Verified Suppliers * Name: Mr. Mrs. Miss. Ms. * Phone: Company: Country:     Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Inquiry Now Recommended Quality Verified Suppliers Inquiry Sent Successfully Confirmation email has been sent:   Go To My Account Need Help?It’s Free Contact Your Sourcing AssistantChat Now Thank you! Your message has been sent to the following suppliers.
